Integrated MEMS Inertial Navigation System High Precision For Autonomous Vehicles
| MOQ: | 1set |
| Delivery Period: | 6-8 weeks |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
Integrated MEMS Inertial Navigation System
,Inertial Navigation System High Precision
,INS System For Autonomous Vehicles

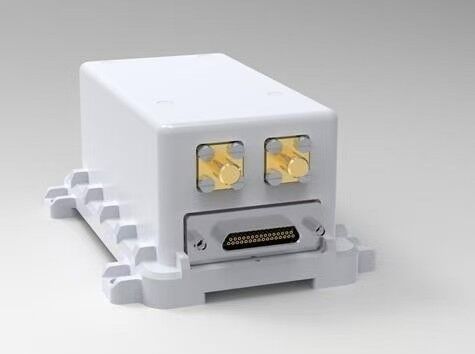

This product is a new generation of micro-electromechanical inertial/satellite combined navigation system, consisting of a high-precision survey-grade satellite receiver board, three-axis MEMS gyroscopes, and three-axis MEMS accelerometer.
It can provide centimeter-level positioning accuracy in environments with good satellite conditions and maintain precise location, speed, and attitude over extended periods.
The product is designed to be lightweight, compact, and user-friendly. It is suitable for various applications such as assisted driving, autonomous vehicles, vehicle positioning and orientation, AGV cars, power line inspection, platform stabilization, surveying and mapping, precision agriculture, and more.Main technical parameter
Main technical parameters
|
System Real-time Accuracy |
||||||
|
Heading |
0.2° (single antenna, with good GNSS/DB signal); 0.1° (dual antennas, baseline ≥2m) |
|||||
|
Attitude |
0.1° (1σ, with good GNSS/DB signal); RTK: 0.1 (1σ). |
|||||
|
Position |
2m (CEP) (single antenna, with good GNSS/DB signal); RTK ≤2cm + 1ppm (CEP) (with good GNSS/DB signal)
|
|||||
|
Speed Accuracy |
0.05m/s (1σ, with good GNSS/DB signal) |
|||||
|
Rate of data update |
200Hz(max) |
|||||
|
Startup time |
≤10s |
|||||
|
Post-processing Accuracy |
||||||
|
Heading |
0.1°(1σ)
|
|||||
|
Attitude |
0.05°(1σ) | |||||
|
Position Accuracy |
2cm+1ppm(CEP) |
|||||
|
Main Device Characteristics |
||||||
|
Gyroscope |
range |
±500°/s |
Zero Bias Stability |
≤10°/h(10s smoothing, 1σ)
|
||
|
Accelerometer |
range |
±5g |
Zero Bias Stability |
5mg (10s smoothing, 1σ)
|
||
|
Physical Characteristic |
Interface Characteristics |
|||||
|
Supply voltage |
24V DC rated(12～32V DC) |
Interface method |
4 serial ports (RS232 or RS422) Support PPS, EVENTMARK input/output |
|||
|
Power consumption |
＜6±0.5W |
|||||
|
Operating temperature |
-40℃～﹢55℃ |
Transmission Rate
|
9600～961200bps(configurable) | |||
|
Protection level |
IP65 |
User Mode |
||||
|
Physical dimension |
≤110mm×81mm×50mm |
Vehicle-mounted (default), aircraft-mounted, ship-mounted |
||||
|
Weight |
≤0.5Kg |
|||||
