Fiber Optic INS Guidance System
,Self Contained INS Guidance System

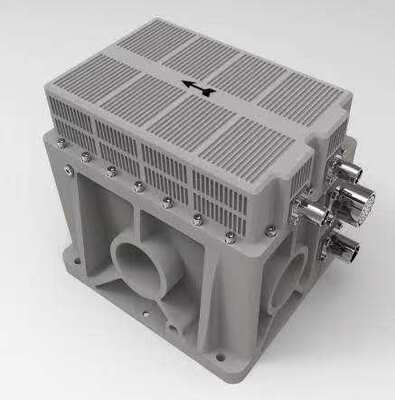

The SI-FINS90S-H is an autonomous fixed inertial navigation system. It offers various configuration interfaces and can access external GPS modes, whether they are built-in or external. TJ-FINS90S can be integrated with Hexin Xingtong UM982 . The GNSS receiver has multiple channels (up to 220). The main function of the multi-frequency receiver is to calculate the speed and position of the system and guarantee accurate time (PVT). The receiver has abundant frequency points and can support GPS L1/L2/L5, BDS B1I/B2I/B3I, and GLONASS G1/G2 signals.
The SI-FINS90S-H can provide the following input interfaces to correct inertial instrument errors:
- Occupancy meter (DMI)
- Doppler Velocimeter (DVL)
- Barometric altimeter
- GPS can also be accessed through the serial interface
Main technical parameters
|
System Real-time Accuracy |
||||||
|
Attitude Accuracy |
Heading ≤0.015° (1σ); |
|||||
|
Position Accuracy |
Single-point horizontal positioning: ≤1.5m (1σ) |
|||||
|
Speed Accuracy |
Horizontal velocity ≤0.03 m/s (1σ), vertical velocity ≤0.05 m/s (1σ) |
|||||
|
Alignment Time |
Start timing after obtaining latitude, longitude and altitude position information. The alignment process duration is ≤5 minutes. |
|||||
|
Inertial/ODO/DVL Combination |
0.2%×Miles traveled (depending on the accuracy of the external odometer) |
|||||
|
Pure Inertial Specification |
||||||
|
Attitude Accuracy |
Azimuth alignment accuracy: ≤0.03°sec (Φ) (1σ, Φ is local latitude) Horizontal attitude alignment accuracy: ≤0.006° (1σ)Azimuth hold accuracy: 0.006°/h (1σ) Horizontal Attitude Holding Accuracy: 0.005°/h (1σ) |
|||||
|
Position Accuracy |
Positioning accuracy: ≤0.6nmile/h(50%CEP) |
|||||
|
Speed accuracy |
Horizontal speed accuracy: ≤0.5m/s (1σ). |
|||||
|
Main Device Characteristics |
||||||
|
Gyroscope |
range |
±500°/s |
Zero Bias Stability |
≤0.005°/h(1σ, 10s smooth)
|
||
|
Accelerometer |
range |
±15g |
Zero Bias Stability |
≤10μg(1σ, 10s smooth)
|
||
|
Physical Characteristic |
Interface Characteristics |
|||||
|
Supply voltage |
24V DC rated(12～32V DC) |
Interface method |
4 serial ports (RS232 or RS422) Support PPS, EVENTMARK input/output |
|||
|
Power Consumption |
≤25W |
|||||
|
Operating Temperature |
-40℃~+55℃ |
Transmission Rate |
9600～961200bps(configurable) |
|||
|
Protection level |
IP65 |
User Mode |
||||
|
Physical Dimensions |
≤170mm×148mm×164mm |
Vehicle-mounted (default), aircraft-mounted, ship-mounted
|
||||
|
Weight |
≤4.6Kg |
|||||
