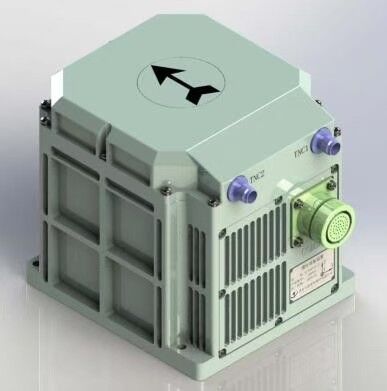

Optical Gyroscope Inertial Navigation System
,Ship Mounted Inertial Navigation System
,Aircraft Mounted INS Guidance System
This product has built-in three-axis integrated high-precision fiber optic gyro, high-precision quartz flexure accelerometer and mobile mapping grade multi-mode and multi-frequency GNSS receiver supporting autonomous BeiDou function. Through the advanced intelligent combination navigation algorithm and Kalman filter, optimized design for GNSS obstruction and multi-path interference, it can realize high-precision heading, attitude, speed and position measurement of moving carriers.
This inertial navigation system has a variety of sensor interfaces such as GNSS/odometer/DVL/barometric altimeter, which can well meet the needs of long-time, high-precision and high-reliability navigation applications in complex environments such as urban canyons, and can be used for the navigation and control of various unmanned systems.
Main technical parameters
|
System Real-time Accuracy |
||||||
|
Attitude Accuracy |
Heading ≤0.04° (1σ); |
|||||
|
Position Accuracy |
Single-point positioning: horizontal ≤ 2m (50% CEP) |
|||||
|
Speed Accuracy |
0.02m/s (Carrier speed less than 500m/s)
|
|||||
|
Alignment Time |
Start timing after obtaining latitude, longitude and altitude position information. The alignment process duration is ≤5 minutes. |
|||||
|
Inertial/ODO/DVL Combination |
0.5%×Miles traveled (depending on the accuracy of the external odometer) |
|||||
|
Pure Inertial Specification |
||||||
|
Attitude Accuracy |
Azimuth alignment accuracy: ≤0.1°sec (Φ) (1σ, Φ is local latitude) Horizontal attitude alignment accuracy: ≤0.006° (1σ) Azimuth hold accuracy: 0.02°/h (1σ) Horizontal Attitude Holding Accuracy: 0.02°/h (1σ)
|
|||||
|
Position Accuracy |
Positioning accuracy: ≤1nmile/h(50%CEP) |
|||||
|
Speed accuracy |
Horizontal speed accuracy: ≤0.8m/s (1σ). |
|||||
|
Main Device Characteristics |
||||||
|
Gyroscope |
range |
±500°/s |
Zero Bias Stability |
≤0.08°/h(1σ, 10s smooth)
|
||
|
Accelerometer |
range |
±20g |
Zero Bias Stability |
≤30μg(1σ, 10s smooth)
|
||
|
Physical Characteristic |
Interface Characteristics |
|||||
|
Supply voltage |
24V DC rated(12～32V DC) |
Interface method |
4 serial ports (RS232 or RS422) Support PPS, EVENTMARK input/output |
|||
|
Power Consumption |
≤15W |
|||||
|
Operating Temperature |
-40℃~+55℃ |
Transmission Rate |
9600～961200bps(configurable) |
|||
|
Protection level |
IP65 |
User Mode |
||||
|
Physical Dimensions |
≤140mm×125mm×126mm |
Vehicle-mounted (default), aircraft-mounted, ship-mounted
|
||||
|
Weight |
≤2.75Kg |
|||||
