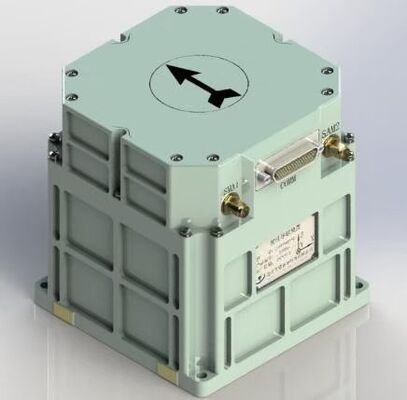

Robust Operation Precision Fiber Optic Inertial Navigation System For Mobile Platforms
| MOQ: | 1set |
| Delivery Period: | 6-8 weeks |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
Precision Fiber Optic Inertial Navigation System
,Robust Operation Inertial Navigation System
This product features a high-precision three-axis integrated fiber optic gyroscope, a compact quartz flexible accelerometer, and a mobile survey-grade multi-mode multi-frequency GNSS receiver with autonomous Beidou support. Utilizing advanced intelligent composite navigation algorithms and Kalman filtering, it is optimized for GNSS occlusion and multipath interference scenarios, enabling high-precision measurement of heading, attitude, velocity, and position for mobile platforms.
The INS also has a variety of sensor interfaces, which can meet the requirements of long-term, high-precision and high-reliability navigation in complex environments such as urban canyon, and can be used for navigation and control of various platform systems.
Main technical parameters
|
System Real-time Accuracy |
||||||
|
Attitude Accuracy |
Heading ≤0.05° (1σ); |
|||||
|
Position Accuracy |
Single-point horizontal positioning: ≤1.5m (1σ) |
|||||
|
Speed Accuracy |
Horizontal velocity ≤0.03 m/s (1σ), vertical velocity ≤0.05 m/s (1σ)
|
|||||
|
Alignment Time |
Start timing after obtaining latitude, longitude and altitude position information. The alignment process duration is ≤5 minutes. |
|||||
|
Inertial/ODO/DVL Combination |
0.5%×Miles traveled (depending on the accuracy of the external odometer) |
|||||
|
Pure Inertial Specification |
||||||
|
Attitude Accuracy |
Azimuth alignment accuracy: ≤0.5°sec (Φ) (1σ, Φ is local latitude) Horizontal attitude alignment accuracy: ≤0.01° (1σ)Azimuth hold accuracy: 0.15°/h (1σ) Horizontal Attitude Holding Accuracy: 0.03°/h (1σ) |
|||||
|
Position Accuracy |
Positioning accuracy: ≤5.0nmile/h(50%CEP) |
|||||
|
Speed accuracy |
Horizontal speed accuracy: ≤5.0m/s(1σ). |
|||||
|
Main Device Characteristics |
||||||
|
Gyroscope |
range |
±500°/s |
Zero Bias Stability |
≤0.15°/h(1σ, 10s smooth)
|
||
|
Accelerometer |
range |
±15g |
Zero Bias Stability |
≤30μg(1σ, 10s smooth)
|
||
|
Physical Characteristic |
Interface Characteristics |
|||||
|
Supply voltage |
24V DC rated(12～32V DC) |
Interface method |
4 serial ports (RS232 or RS422) Support PPS, EVENTMARK input/output |
|||
|
Power Consumption |
≤18W |
|||||
|
Operating Temperature |
-40℃~+60℃ |
Transmission Rate |
9600～961200bps(configurable) |
|||
|
Protection level |
IP65 |
User Mode |
||||
|
Physical Dimensions |
≤100mm×100mm×108mm |
Vehicle-mounted (default), aircraft-mounted, ship-mounted
|
||||
|
Weight |
≤1.4Kg |
|||||
