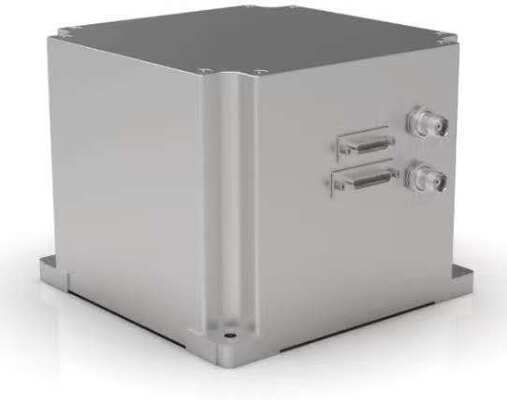

Fiber Optic Integrated Navigation System
,Fiber Optic Integrated Navigation System Combination
,Maritime Guidance Integrated Navigation System
This product features a high-precision three-axis integrated fiber optic gyroscope, a high-precision quartz flexible accelerometer, and a mobile survey-grade multi-mode multi-frequency GNSS receiver with native Beidou support. Through advanced intelligent composite navigation algorithms and Kalman filtering, it is optimized for GNSS occlusion and multipath interference scenarios, enabling high-precision measurement of heading, attitude, velocity, and position for moving targets.
The system also has a variety of sensor interfaces, such as GNSS, odometer, DVL, and barometer, which can meet the requirements of long-term, high-precision, and high-reliability navigation in complex environments like urban canyons. It can be used for navigation and control in various platform systems.
Main technical parameters
|
System Real-time Accuracy |
||||||
|
Attitude Accuracy |
Heading ≤0.02° (1σ); |
|||||
|
Position Accuracy |
Single-point horizontal positioning: ≤1.5m (1σ) |
|||||
|
Speed Accuracy |
Horizontal velocity ≤0.03 m/s (1σ), vertical velocity ≤0.05 m/s (1σ) |
|||||
|
Alignment Time |
Start timing after obtaining latitude, longitude and altitude position information. The alignment process duration is ≤5 minutes. |
|||||
|
Inertial/ODO/DVL Combination |
0.2%×Miles traveled (depending on the accuracy of the external odometer) |
|||||
|
Pure Inertial Specification |
||||||
|
Attitude Accuracy |
Azimuth alignment accuracy: ≤0.05°sec (Φ) (1σ, Φ is local latitude) Horizontal attitude alignment accuracy: ≤0.006° (1σ)Azimuth hold accuracy: 0.01°/h (1σ) Horizontal Attitude Holding Accuracy: 0.005°/h (1σ)
|
|||||
|
Position Accuracy |
Positioning accuracy: ≤0.8nmile/h(50%CEP) |
|||||
|
Speed accuracy |
Horizontal speed accuracy: ≤0.8m/s (1σ). |
|||||
|
Main Device Characteristics |
||||||
|
Gyroscope |
range |
±300°/s |
Zero Bias Stability |
≤0.01°/h(1σ, 10s smooth)
|
||
|
Accelerometer |
range |
±15g |
Zero Bias Stability |
≤20μg(1σ, 10s smooth)
|
||
|
Physical Characteristic |
Interface Characteristics |
|||||
|
Supply voltage |
24V DC rated(12～32V DC) |
Interface method |
4 serial ports (RS232 or RS422) Support PPS, EVENTMARK input/output |
|||
|
Power Consumption |
≤25W |
|||||
|
Operating Temperature |
-40℃~+55℃ |
Transmission Rate |
9600～961200bps(configurable) |
|||
|
Protection level |
IP65 |
User Mode |
||||
|
Physical Dimensions |
≤179.6mm×179.6mm×145mm |
Vehicle-mounted (default), aircraft-mounted, ship-mounted
|
||||
|
Weight |
≤5.5Kg |
|||||
